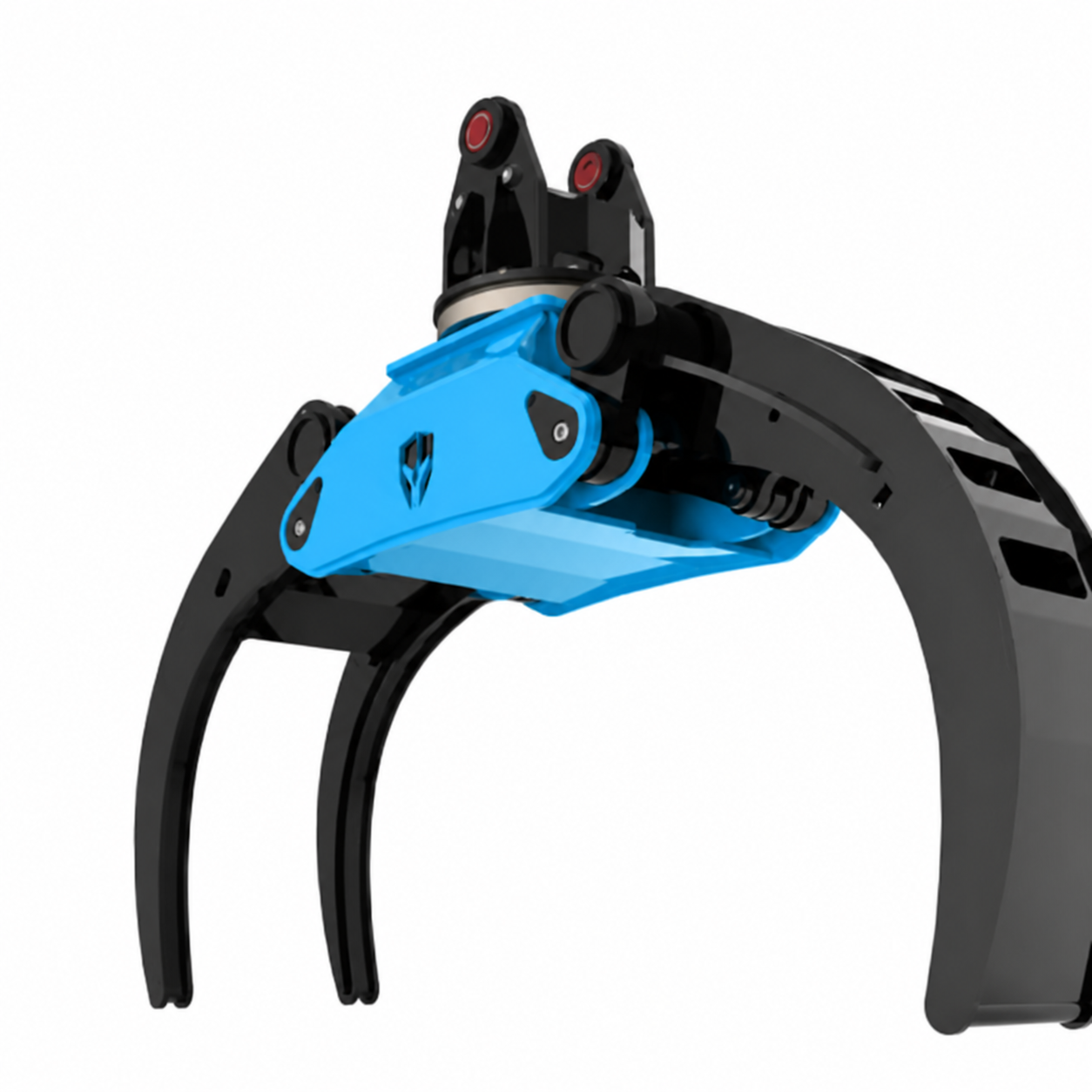

C1930 Large Capacity Grapple 1m²

Our sturdy and reliable design has been rigorously tested and proven to be ideal for high-volume load-out operations. With a track record of 24/7 functionality throughout New Zealand, our design provides the assurance and peace of mind that your operations will run smoothly and efficiently.
The machine’s capacity – 1m²

Additional information

CAPACITY

1.0m²

MAX CLAMP OPENING

2250MM

MIN LOG GRIP

200MM

APPROX WEIGHT

1995 KG

HYDRAULIC SLEW MOTOR

DISPLACEMENT 250CC, MAXIMUM FLOW 31.5L/MIN

SLEW BEARING & PINION

Hardened Pinion 14T Involute Spline Shaft
Hardened Ring Gear: 77t Max Rating German Bearing

CLAMP ARM RAMS

Ø4" Bore x ½" Thick Cylinder Wall
Ø2½" High Tensile Spear

PIVOT PINS

Knuckle: Ø3" 4140 Induction Hardened Chrome Bar
Grapple Pivots: Ø3" 4140 Induction Hardened Chrome Bar

ROTARY DISTRIBUTOR VALVE

High Pressure 4500PSI Rated
